Fleet

Owner

Year of Build

Class

Flag

IMO NO.

BHP

Bollard Pull

Clear Deck Area

CREATIVE MARITIME SERVICES LLP

2004

ABS, A1, AH/OSV, Towing, FiFi 1, AMS

INDIA

9300233

5000

60 MT Continuous

390 m2

VESSEL SPECIFICATIONS

DIMENSIONS

Length Overall

Length, BP

Molded Depth

Molded Breadth

Designed Draft

Maximum Draft

Gross Tonnage

Net Tonnage

Deadweight (max)

Clear Deck Area

Deck Cargo

Deck Strength

60.0 m

56.4 m

5.5 m

16.0 m

4.2 m

4.85 m

1,592 T

477 T

1,650 T

390 m2 (30.0 x 13.0 m)

600 T

5 T/m2

DECK MACHINERY

Tugger

Capstan

Windlass

Crane Capacity

2 x 6T @ 17 m/min

2 x 6T @ 24 m/min

1 x 5.5T @ 11 m/min

1 x 5T @ 8 m, fixed boom

DYNAMIC POSITIONING SYSTEM

Class

Joystick

None

Poscon

EXTERNAL FIRE FIGHTING & ANTI-POLLUTION

External FiFi Pumps

Water Monitors

Foam Monitors

Fixed Water Spray

Foam Tank

Dispersant Tank

Dispersant Boom

2 x 1,500 m3/hr at 14 bar

2 x 1,200 m3/hr

2 x 300 m3/hr

FiFi 1 Requirement

10 m3

12.5 m3

2 x 6 m Length

NAVIGATION & COMMUNICATION EQUIPMENT

X-band and S-band Radars, Autopilot, Echo Sounder, Speed Log,

Weather Fax

2 x INMARSAT-C

RESCUE EQUIPMENT

6-men Rescue Boat, 40 HP Outboard Motor and Davit

MACHINERY

Main Engines

Main Propulsion

Bow Thruster

Stern Thruster

Shaft Generators

Auxiliary Generators

2 x 1,896 kW, MaK 6M25

CPP in Fixed Nozzle

450 kW, CPP, 7T Thrust

Nil

2 x 1,000 kW, 440V/3P/60Hz

2 x 270 kW, 440V/3P/60Hz

1 x 90 kW, 440/3P/60Hz

TOWING AND ANCHOR-HANDLING

Bollard Pull

Main Winch

Drum Capacity

Load Capacity

Brake Capacity

Chain Gypsy Cable Lifter

Chain Locker Capacity

Stern Roller

Tow Pin

Chain Stopper

Spare Reel Capacity

60T, continuous

Brattvaag LP Hydraulic

2 x 1,400 m of 56 mm wire

150T at 1st Layer

250T at 1st Layer

2 x 76 mm

Nil

4 m length x 1.5 m dia, 180T SWL

2 x Karmoy, 160T BP

2 x Karm Fork, 300T SWL

2 x 1,400 m of 56 mm wire

CAPACITY AND TRANSFER RATE

Fuel Oil

Fresh Water

Drill/Ballast Water

Liquid Mud

Mud/Brine/Base Oil

Recovered Oil

Dry Bulk

Chiller/Freezer

Fresh Water Maker

527 m3 1 x 100 m3/hr at 6 bar

476 m3 1 x 100 m3/hr at 6 bar

482 m3 1 x 100 m3/hr at 6 bar

177 m3

159 m3 1 x 75 m3/hr at 15 bar

1 x 100 m3/hr at 6 bar

Nil

170 m3

10 m3 each

1 x 5T/day

ACCOMMODATION

1 man cabin x 4

2 men cabin x 5

4 men cabin x 3

Total

4 men

10 men

12 men

26 men

GENERAL ARRANGEMENT

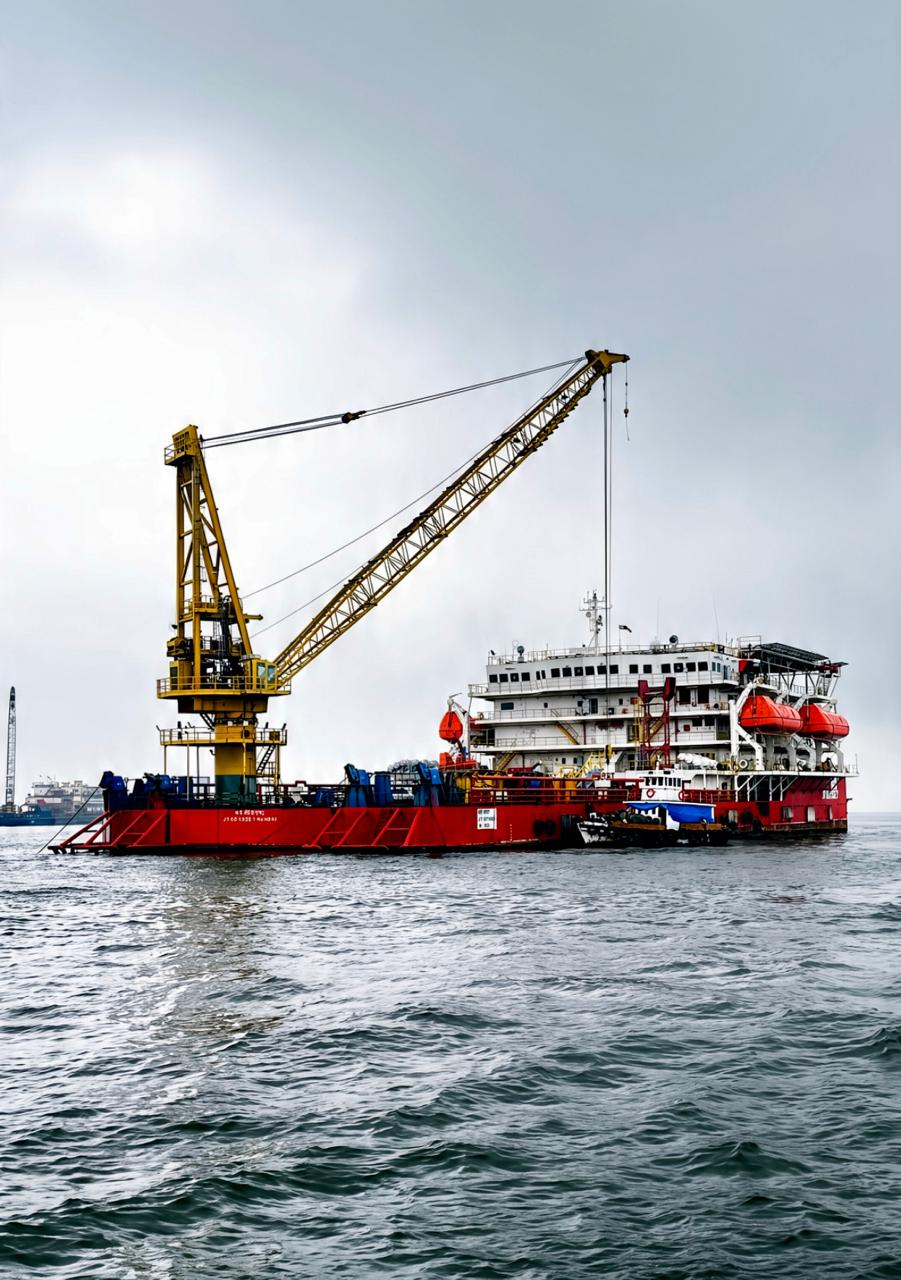

J T Odyssey is a Work Barge with an accommodation capacity of 300 men.

J T Odyssey is equipped with comfortable accommodation including offices, work stations conference room and recreation room.

The configuration of the vessel makes it unique and versatile barge, suitable for supporting a wide range of Offshore projects and marine logistics in the continental shelf for offshore Oil and Gas industry. J T Odyssey is equipped with comfortable accommodation including offices, work stations conference room and recreation room.

It has an 8 point mooring system, capable of performing the following activities :

❖ Construction Work

❖ Hook up and Commissioning Support

❖ Accommodation Support

❖ Maintenance

❖ Logistics and Warehousing Base
